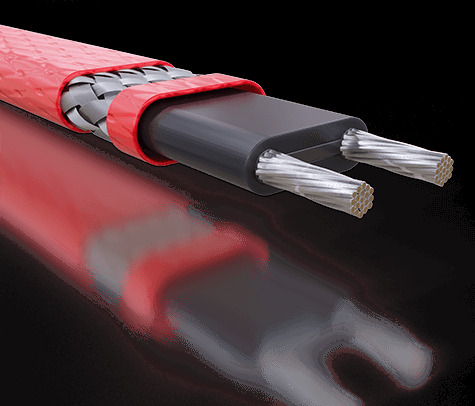

USX Self-Regulating Heat Cable

Name: USX Self-Regulating Heat Cable
Brand: Mandar Engineering and Trading Company
Price: 1000 INR
Availability: InStock

Price 1000 INR/ Meter

Get a Price/Quote

USX Self-Regulating Heat Cable Specification

Install Type
Field spliceable, cut-to-length

Weight
Varies, approx. 0.15-0.25 kg/m

Locking Type
N/A (connection by cable glands and end seals)

Conductor Type
Stranded

Dielectiric Strength
2000VAC

Number of Conductor
2

Impedance
Low (typical for heating cables)

Core Material
Copper

Cable Type
Self-regulating heater cable

Conductor Shape
Flat

Diameter
Nominal 12mm-15mm

Insulation
Polyolefin or other high-performance polymers

Usage & Applications
Pipe tracing, freeze protection, industrial and commercial heating

Tensile Strength
High tensile strength for industrial use

Features
Self-regulating, Energy efficient, Durable, Resistance to overheating

Armored Material
Available with stainless steel optional for mechanical protection

Core Number
2

Rated Temperature
Max 65C (continuous exposure), Max withstand 85C

Operating Temperature
-40C to 65C (maintain)/85C max

Product Type
Self-regulating heating cable

Length
Customizable as per requirement

Voltage
110V/220V/240V/277V options

Insulation Material
Other

Application
Other

Conductor Material
Tinned Copper

Jacket Material
Thermoplastic or Fluoropolymer

Storage Temperature
-40C to 85C

Connector Color
Typically black or red, varies by manufacturer

Shield Material
Tinned copper braid

Jacket Color
Other

Dimension (L*W*H)
Varies by specification, standard widths typically from 12mm to 15mm

Color
Red outer jacket

Material
Polyolefin, Thermoplastic, Copper

Size
Consult manufacturers datasheet for specific sizing

Moisture Resistance
Excellent, suitable for wet environments

Environmental Suitability
UV resistant, chemical resistant jacket

Voltage Withstand Capability
>3000V for 1 minute

Installation Accessories
End seals, power connectors, tape, warning labels

Flame Retardant
Yes

Cable Markings
Permanent print for identification

Minimum Bend Radius
25mm (at -15C installation)

Cut-to-Length Capability
Yes, at site by user

Power Output
10W/m to 33W/m at 10C (varies by model)

Maintenance Requirement
Low; designed for long service life

Max Exposure Temperature (Power-Off)
Up to 85C

USX Self-Regulating Heat Cable Trade Information

Minimum Order Quantity
5 Meter

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About USX Self-Regulating Heat Cable

Experience invincible performance with our US Self-Regulating Heat Cable, a noteworthy solution for pipe freeze protection, roof de-icing, and tank heating. This cable is engineered with a durable, energy-efficient, and flame-retardant design, ensuring breathtaking results even in the most challenging industrial and commercial conditions. Popular for its low maintenance and remarkable cut-to-length capability, it's UV and chemical-resistant for extended service life. Take advantage of this limited-time, advance purchase offer and enjoy peace of mind, knowing you're investing in industry-leading reliability and protection.

Optimal Applications and Versatile Usage

US Self-Regulating Heat Cable is extensively used for pipe tracing, freeze protection, and temperature maintenance. This cable supports both industrial and commercial heating requirements, and is suitable for application at sites including rooftops, gutters, tanks, and pipes. Its self-regulating nature ensures safety and efficiency in wet or challenging environments, making it the ideal choice for customizable installations requiring quick adaptability and dependable performance.

Supply, Packaging, and Export Readiness

Enjoy the benefits of swift arrival and seamless delivery, as our US Self-Regulating Heat Cable products remain stock ready for immediate drop-off. Packaging is secure and tailored to protect cables during transit, whether in rolls or wooden drums. We primarily supply to major export markets including India, the Middle East, Europe, and North America, ensuring availability for urgent industrial or commercial needs. Contact us for current supply ability and detailed export schedules.

FAQ's of US Self-Regulating Heat Cable:

Q: How does the self-regulating feature of the cable enhance performance?

A: The self-regulating feature automatically adjusts heat output based on ambient conditions, ensuring efficient energy use and reducing the risk of overheating, which is crucial for maintaining safety and prolonging cable life.

Q: What is the process for cutting and installing the heat cable on-site?

A: Installation is simplified as the cable can be cut to custom lengths directly at the site. It is field spliceable and requires standard accessories like end seals and power connectors to complete safe and secure installations.

Q: Where can this heat cable be optimally used?

A: This cable is ideal for pipe freeze protection, roof and gutter de-icing, and temperature maintenance applications in both industrial and commercial environments, especially where moisture and harsh weather are common.

Q: What are the key benefits of using this heat cable over traditional alternatives?

A: Key benefits include its invincible resistance to UV, chemicals, and flames, its low maintenance requirement, and its quick adaptability to various lengths and environments, making it reliable for long-term use.

Q: When is the best time to purchase this product for maximum availability?

A: Ordering during advance purchase windows or popular stocking periods ensures access to the latest inventory and limited-time offers, thereby avoiding supply shortages during peak demand seasons.

Q: How does the cable's noteworthy moisture resistance ensure safer use?

A: The cable's excellent moisture resistance makes it suitable for wet and humid sites, reducing electrical hazards and ensuring safe, reliable heating even under continual exposure to moisture.
